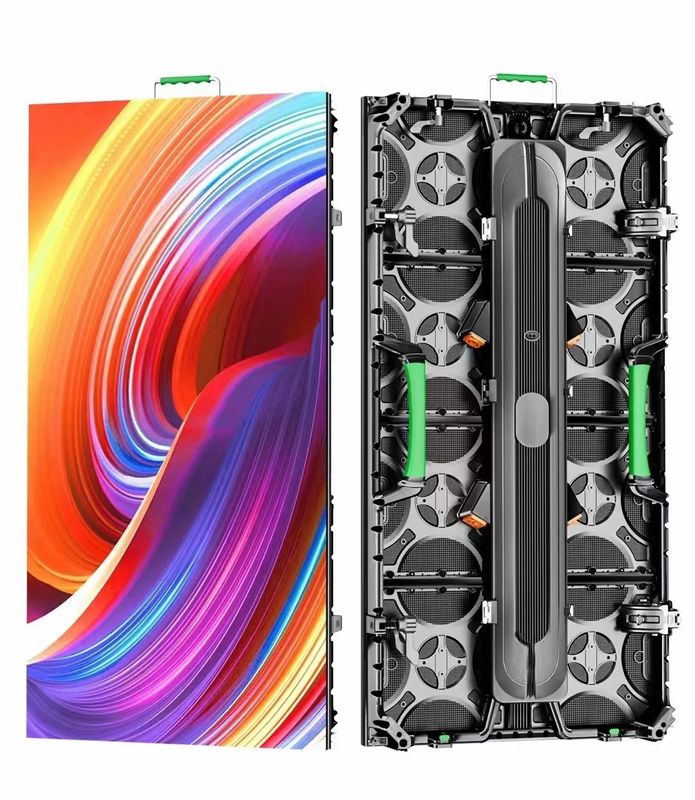

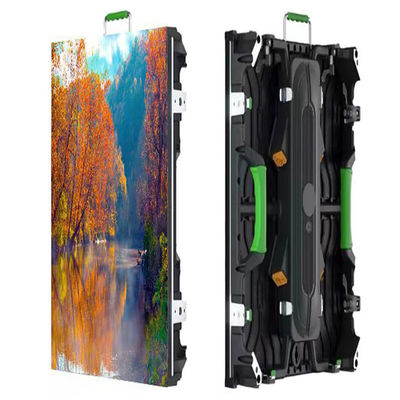

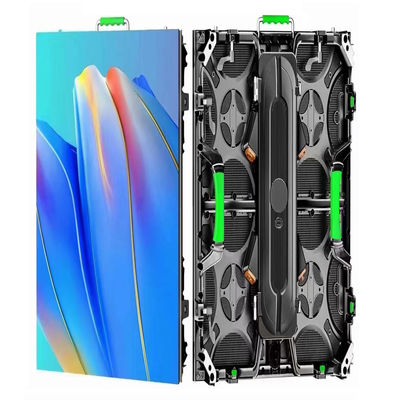

Rental Screen Magnitic Fix Front Maintenance Hard Link P2.604 Outdoor 500*1000 1920hz LED Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | ODM, OEM, Free Logo |
| Certification: | CE, RoHS, 3C, FCC, Energy Saving |
| Model Number: | P2.604 500*1000 outdoor 1920hz hard link front maintenance |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 square meter |
|---|---|
| Price: | 460 ~ 498 |
| Packaging Details: | ply-wood case; 6-in-1 flycase |
| Delivery Time: | 20-25 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 4000 square meter per month |
|
Detail Information |
|||
| Product Name: | P2.604 500*1000 Outdoor 1920hz Curve Link(curve Lock), Magnitic Maintanence, Hard Link | Module Size: | 250x250mm |
|---|---|---|---|
| Module Resolution: | 96x96 Pixels | Cabinet Size: | 500x1000mm |
| Cabinet Resolution: | 192x384pixels | Pixel Pitch: | 2.604mm |
| LED Lamp: | Kinglight /Hongsheng | IC: | ICN2037 |
| Refresh Frequency: | 1920hz | Brightness: | 800 Cd/m2 |
| Cabinet Weight: | 12Kg | Module Qty: | 2x4cs |
| Scanning Mode: | 1/32scan | Power Input: | AC 220-240V |
| IP Grade: | IP56 | ||
Product Description
P2.604 500*1000 indoor 3840hz curve linking(curve lock), magnitic maintanence, hard link
Company Profile
We are HK Brilliance Tech Co., LTD. Our headquater is located on HK, China; and our factory is located on Shenzhen and Guangzhou, China. We have over 10 years manufacturing experience. We provide wide option of model of this type of product and we support customization for products and brand and logo.
Our products enjoy quick sale all over the world. We have more than 3 steps and procedure for quality check and quality assurance system. Each of products will ensure over 48h final performacne testing. With good quality, client always give good repute for our products.
Detailed Product Description
| Module Specifications |
| 1 | Pixel Pitch | 2.604mm | |
| 2 | Led Type | SMD1515 | |
| 3 | Module Size | 250x250mm | |
| 4 | Module Resolution | 96x96 pixels | |
| 5 | Driving IC | 2037 | |
| 6 | LED lamp | kinglight | |
| Cabinet Specification | |||
| 1 | Cabinet Size | 500x1000mm | |
| 2 | Cabinet Resolution | 192x384pixels | |
| 3 | Module Qty. | 2x4cs | |
| 4 | Cabinet Materials | Die-casting aluminum | |
| 5 | Cabinet Weight | 13Kg | |
| Screen Parameters | |||
| 1 | Screen Size | ||
| 2 | Screen Resolution | ||
| 3 | Cabinet Qty. | ||
| 4 | Brightness | 4000 cd/m2 | |
| 5 | Scanning Mode | 1/32scan | |
| 6 | Viewing Angle | H:140°;V:140° | |
| 7 | Viewing Distance | >4m | |
| 8 | Gray Level | 16 Bit | |
| 9 | Refresh Frequency | 3840 Hz | |
| 10 | Power Input | AC 220-240V | |
| 11 | Power Comsuption | Max: 800W/㎡ Average: 350W/㎡ | |
| 12 | MTBF--hours | >10,000 hours | |
| 13 | Life--hours | ≥100,000 hours | |
| 14 | IP Grade | IP40 | |
| 15 | Operating Temperature | -30℃~ 60℃ | |
| 16 | Storage Humidity | 10℃~80℃RH | |
| 17 | Control Syetem | Novastar | |
| 18 | Operating System | Windows7/ Windows10 | |
| 19 | Power Supply | G-ENERGY | |
| 20 | Maintance Access | Back service | |
Application
Widely used in Large conference room, Indoor stadium, scshool,big event , Auditorium,etc.
Nanjing indoor P2 full colorLED display.
Indonesian indoor stadium LED display project
The trade school at Tengxian County Guangxi province P4 fullcolor LED display.
The Energy Eighteen Food Palace at Zhongshan City P5 full cololLED display.
The one thousand people auditorium of Anshun Senior MiddleSchool P4 full color LED display.
Certificate
FAQ (frequently asked questions):
Q1: Do you have certificates?
A1: Yes, we have certification like CE, RoHS, CCC, FCC, ISO9001, etc; and for specific certification for some countries, we can help apply for these certificates. Furthermore, we can also provide certificate of origin.
Q2: What about the lead time?
A2: Each type of product has its own lead time, thus, for the lead time, please advise us what products you are interested in and what is your quantity towards the product. As for this products, for small trial order or sample order, usually it takes about 20~25 days; and for bulk order, it depends on quantity, usually for 300 square meter, it takes about 20~25 days.
Q3: What is your MOQ?
A3: MOQ depends on product. Please contact us to check the MOQ based on the products that your are interested in.
Q4: How do you ship the goods and how long does it take to arrive?
A4: We accept EXW, FOB, CIF, DAP, etc terms. If you have your own shipping agent, you can deal with us in EXW or FOB; If you do not have forwarder, we suggest you deal with us in CIF or DAP terms. For shipping time, it depends on the destination country; and we can talk with and confirm it before we sign contract with each other.
Q5: Is it OK to print our own logo to the products?
A5: Yes. We provide OEM service. You can print your own brand and logo on our products. Just advise us and give us logo icon before we confirm and start producing. By the way, we also support no brand production. If you want to use our own brand “HKB”, it is also OK.
Q6: How to deal with the faulty?
A6: First, our products are produced in very strict quality control system under our expert QC and QA team. Second, we will prepare some spare parts in proportion to your order quantity and provide tel-technology support.
Q7: How to proceed an order for our products?
A7: First, advise us what products you need and the quantity and the parameter of them. Please be sure to let us know all details of your requirement. Second, we quote according to your requirement and will give us suggestion if you need. Third, you place the order and transfer deposit to confirm the order. Fourth, we start our production and QA test. Fifth, you pay for the balance to close the order, and we help deliver or ship at your requirement.
Payment & Packing Transport
1.Transfer deposit when confirm order, and pay for balance when goods is ready.
2.Accept EXW, FOB, CIF, etc based on your request.
