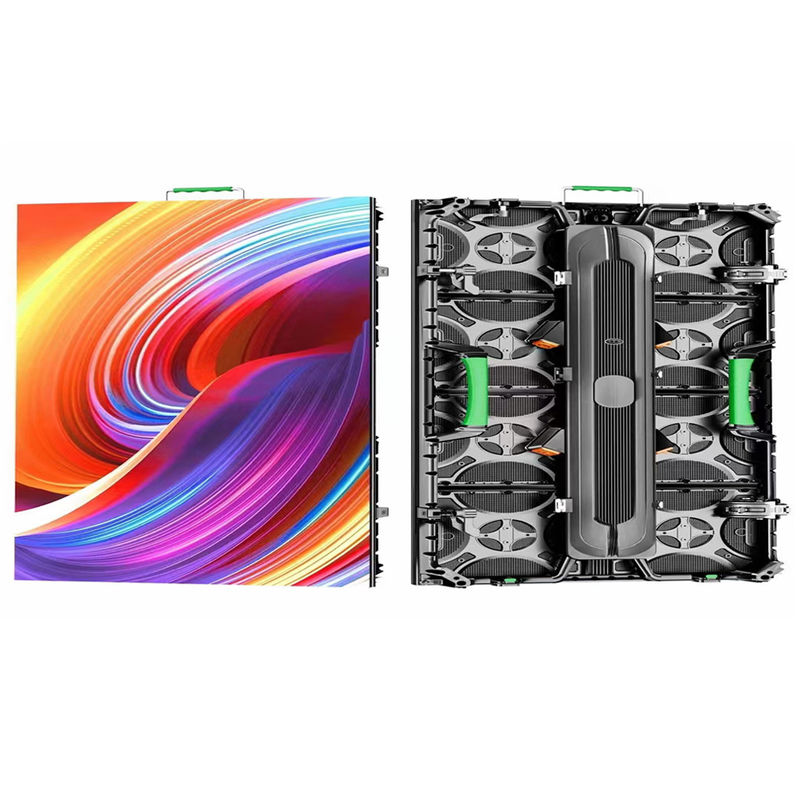

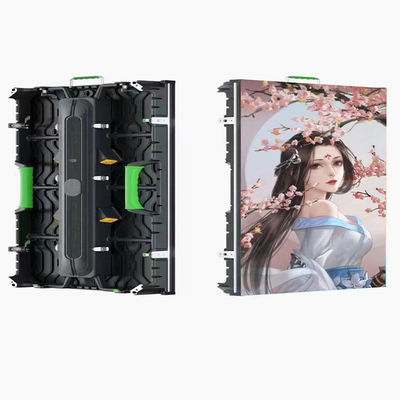

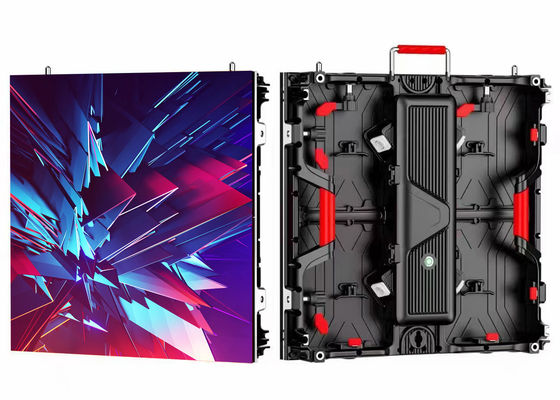

LED Screen Rental Die Casting Aluminum Cabinet P2.976 Indoor 500*500 Front Fixing 3840hz Hard Link Hub Curve Lock

Place of Origin China
Brand Name ODM, customizable, Free logo
Certification CE, RoHS, CCC
Model Number PH2.976 500*500 indoor 3840hz curve lock hard link front fixing
Minimum Order Quantity 100 square meter
Price USD 137~165/ PC
Packaging Details 8-in-1 flycase 98*58*72cm 92kg/case
Delivery Time 20-25 days
Payment Terms T/T, L/C
Supply Ability 4000 square meter / month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name PH2.976 500*500 Indoor Rental LED Display 3840hz Module Size 250x250mm
Module Resolution 96x96 Pixels Cabinet Size 500x500mm
Cabinet Resolution 192x192pixels Material Die-casting Aluminum
Pixel Pitch 2.976mm LED Lamp Hongsheng
IC 2153 Refresh Frequency 3840hz
Brightness 800 Cd/m2 Cabinet Weight 7Kg
Module Qty 2x2cs Scanning Mode 1/32scan
Power Input AC 220-240V IP Grade IP56
High Light

3840hz LED Screen Rental

,

P2.976 LED Screen Rental

,

Die Casting Aluminum LED Screen Rental

You can tick the products you need and communicate with us in the message board.
Pixel Pitch 2.976mm
Led Type SMD2121
Module Size 250x250mm
Module Resolution 96x96 pixels
Driving IC ICN2153
LED lamp Hongsheng
Cabinet Size 500x500mm
Cabinet Resolution 192x192pixels
Module Qty. 2x2cs
Cabinet Materials Die-casting aluminum
Cabinet Weight 7Kg
Screen Size
Screen Resolution
Cabinet Qty.
Brightness 800 cd/sm
Scanning Mode 1/32scan
Viewing Angle H:140°;V:140°
Viewing Distance >4m
Gray Level 16 Bit
Refresh Frequency 3840hz
Power Input AC 220-240V
Power Comsuption Max: 800W/㎡ Average: 350W/㎡
MTBF--hours >10,000 hours
Life--hours ≥100,000 hours
IP Grade IP40
Operating Temperature -30℃~ 60℃
Storage Humidity 10℃~80℃RH
Control Syetem Novastar
Operating System Windows7/ Windows10
Power Supply G-ENERGY
Maintance Access Back service
Leave a Message
Pixel Pitch 2.976mm
Product Description

1920hz 2.604mm For Commercial Display 500*500 Indoor Rental LED Screen



3840hz LED Screen Aluminum Cabinet P2.976 500*500 Indoor Front Fixing Hard Link Curve Lock

Company Profile

We are HK Brilliance Tech Co., LTD. Our headquater is located on HK, China; and our factory is located on Shenzhen and Guangzhou, China. We have over 10 years manufacturing experience. We provide wide option of model of this type of product and we support customization for products and brand and logo.

Our products enjoy quick sale all over the world. We have more than 3 steps and procedure for quality check and quality assurance system. Each of products will ensure over 48h final performacne testing. With good quality, client always give good repute for our products.







Detailed Product Description

 Module Specifications
 1  Pixel Pitch  2.976mm
 2   Led Type  SMD2121
 3  Module Size  250x250mm
 4  Module Resolution  96x96 pixels
 5  Driving IC  2153
 6  LED lamp  Hongsheng
 Cabinet Specification
 1  Cabinet Size  500x500mm
 2  Cabinet Resolution  500x500mm
 3  Module Qty.  2x2cs
 4  Cabinet Materials  Die-casting aluminum
 5 Cabinet Weight  7Kg
 Screen Parameters
 1  Screen Size
 2  Screen Resolution
 3  Cabinet Qty.
 4  Brightness  800 cd/m2
 5  Scanning Mode  1/32scan
 6  Viewing Angle  H:140°;V:140°
 7  Viewing Distance  >4m
 8  Gray Level  16 Bit
 9  Refresh Frequency  3840hz
10  Power Input  AC 220-240V
11  Power Comsuption  Max: 800W/ Average: 350W/
12  MTBF--hours  >10,000 hours
13  Life--hours  ≥100,000 hours
14  IP Grade  IP40
15  Operating Temperature  -30~ 60
16  Storage Humidity  10~80RH
17  Control Syetem  Novastar
18  Operating System  Windows7/ Windows10
19  Power Supply  G-ENERGY
20  Maintance Access  Back service

LED Screen Rental  Die Casting Aluminum Cabinet P2.976 Indoor 500*500 Front Fixing 3840hz Hard Link Hub Curve Lock 0

LED Screen Rental  Die Casting Aluminum Cabinet P2.976 Indoor 500*500 Front Fixing 3840hz Hard Link Hub Curve Lock 1LED Screen Rental  Die Casting Aluminum Cabinet P2.976 Indoor 500*500 Front Fixing 3840hz Hard Link Hub Curve Lock 2













Application



Widely used in Large conference room, Indoor stadium, scshool,big event , Auditorium,etc.



LED Screen Rental  Die Casting Aluminum Cabinet P2.976 Indoor 500*500 Front Fixing 3840hz Hard Link Hub Curve Lock 3

Nanjing indoor P2 full colorLED display.



LED Screen Rental  Die Casting Aluminum Cabinet P2.976 Indoor 500*500 Front Fixing 3840hz Hard Link Hub Curve Lock 4

Indonesian indoor stadium LED display project

LED Screen Rental  Die Casting Aluminum Cabinet P2.976 Indoor 500*500 Front Fixing 3840hz Hard Link Hub Curve Lock 5



The trade school at Tengxian County Guangxi province P4 fullcolor LED display.



LED Screen Rental  Die Casting Aluminum Cabinet P2.976 Indoor 500*500 Front Fixing 3840hz Hard Link Hub Curve Lock 6

The Energy Eighteen Food Palace at Zhongshan City P5 full cololLED display.



LED Screen Rental  Die Casting Aluminum Cabinet P2.976 Indoor 500*500 Front Fixing 3840hz Hard Link Hub Curve Lock 7

The one thousand people auditorium of Anshun Senior MiddleSchool P4 full color LED display.











Certificate

LED Screen Rental  Die Casting Aluminum Cabinet P2.976 Indoor 500*500 Front Fixing 3840hz Hard Link Hub Curve Lock 8 LED Screen Rental  Die Casting Aluminum Cabinet P2.976 Indoor 500*500 Front Fixing 3840hz Hard Link Hub Curve Lock 9 LED Screen Rental  Die Casting Aluminum Cabinet P2.976 Indoor 500*500 Front Fixing 3840hz Hard Link Hub Curve Lock 10 LED Screen Rental  Die Casting Aluminum Cabinet P2.976 Indoor 500*500 Front Fixing 3840hz Hard Link Hub Curve Lock 11

LED Screen Rental  Die Casting Aluminum Cabinet P2.976 Indoor 500*500 Front Fixing 3840hz Hard Link Hub Curve Lock 12 LED Screen Rental  Die Casting Aluminum Cabinet P2.976 Indoor 500*500 Front Fixing 3840hz Hard Link Hub Curve Lock 13 LED Screen Rental  Die Casting Aluminum Cabinet P2.976 Indoor 500*500 Front Fixing 3840hz Hard Link Hub Curve Lock 14 LED Screen Rental  Die Casting Aluminum Cabinet P2.976 Indoor 500*500 Front Fixing 3840hz Hard Link Hub Curve Lock 15 ​​











FAQ (frequently asked questions):

Q1: Do you have certificates?

A1: Yes, we have certification like CE, RoHS, CCC, FCC, ISO9001, etc; and for specific certification for some countries, we can help apply for these certificates. Furthermore, we can also provide certificate of origin.



Q2: What about the lead time?

A2: Each type of product has its own lead time, thus, for the lead time, please advise us what products you are interested in and what is your quantity towards the product. As for this products, for small trial order or sample order, usually it takes about 20~25 days; and for bulk order, it depends on quantity, usually for 300 square meter, it takes about 20~25 days.



Q3: What is your MOQ?

A3: MOQ depends on product. Please contact us to check the MOQ based on the products that your are interested in.



Q4: How do you ship the goods and how long does it take to arrive?

A4: We accept EXW, FOB, CIF, DAP, etc terms. If you have your own shipping agent, you can deal with us in EXW or FOB; If you do not have forwarder, we suggest you deal with us in CIF or DAP terms. For shipping time, it depends on the destination country; and we can talk with and confirm it before we sign contract with each other.



Q5: Is it OK to print our own logo to the products?

A5: Yes. We provide OEM service. You can print your own brand and logo on our products. Just advise us and give us logo icon before we confirm and start producing. By the way, we also support no brand production. If you want to use our own brand “HKB”, it is also OK.



Q6: How to deal with the faulty?

A6: First, our products are produced in very strict quality control system under our expert QC and QA team. Second, we will prepare some spare parts in proportion to your order quantity and provide tel-technology support.



Q7: How to proceed an order for our products?

A7: First, advise us what products you need and the quantity and the parameter of them. Please be sure to let us know all details of your requirement. Second, we quote according to your requirement and will give us suggestion if you need. Third, you place the order and transfer deposit to confirm the order. Fourth, we start our production and QA test. Fifth, you pay for the balance to close the order, and we help deliver or ship at your requirement.









Payment & Packing Transport

1.Transfer deposit when confirm order, and pay for balance when goods is ready.

2.Accept EXW, FOB, CIF, etc based on your request.
